go-proxy

A simple auto docker reverse proxy for home use. Written in Go

In the examples domain x.y.z is used, replace them with your domain

Table of content

• Features
• Why am I making this
• How to use
• Configuration
  • Single Port Configuration
  • Multiple Ports Configuration
  • TCP/UDP Configuration
  • Load balancing Configuration
• Troubleshooting
• Benchmarks
• Memory usage
• Build it yourself
• Getting SSL certs

Features

• auto detect reverse proxies from docker

• additional reverse proxies from provider yaml file

• allow multiple docker / file providers by custom config.yml file

• subdomain matching (domain name doesn't matter)

• path matching

• HTTP proxy

• TCP/UDP Proxy

• HTTP round robin load balance support (same subdomain and path across containers replicas)

• Auto hot-reload when container start / die / stop.

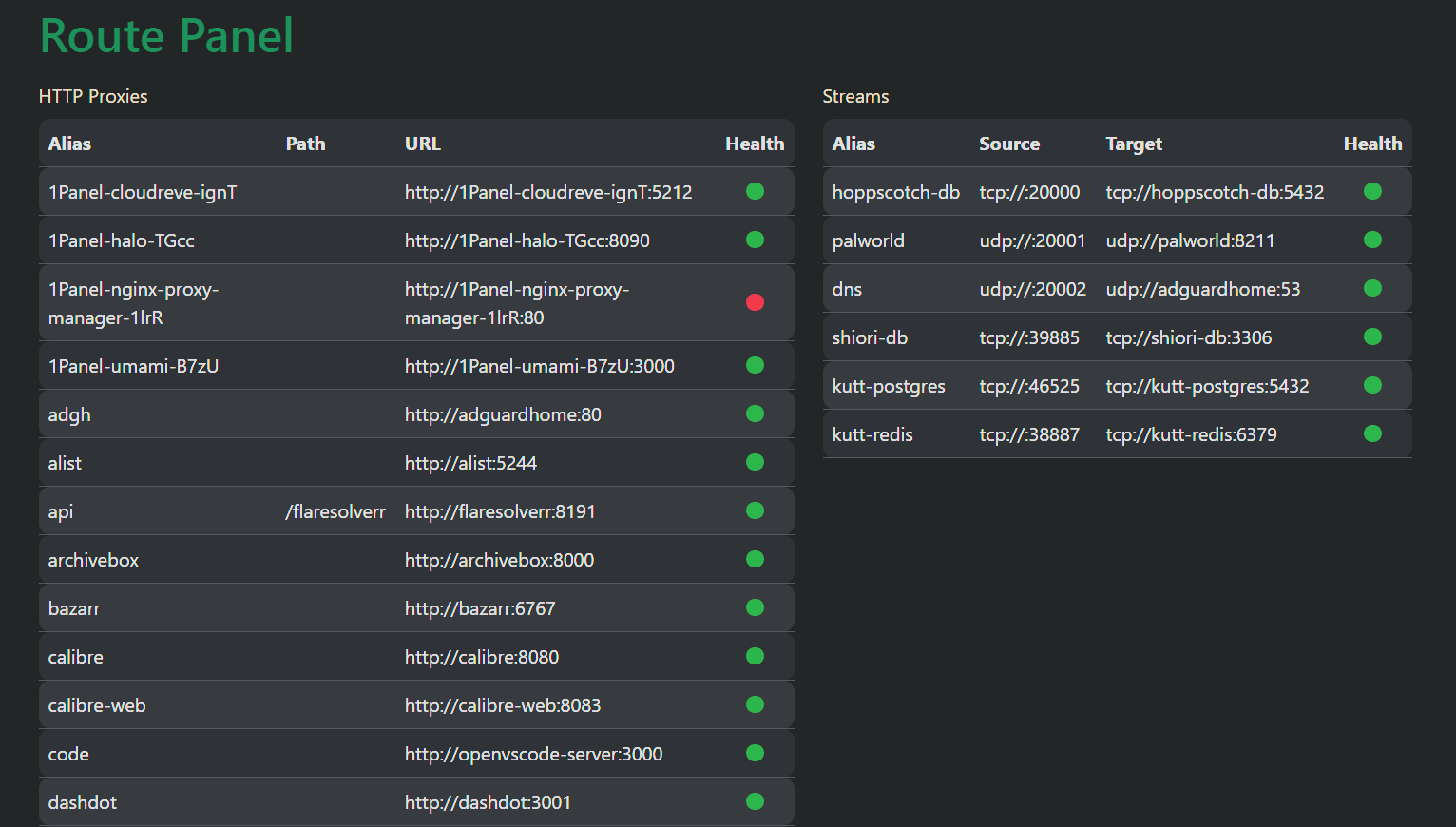

• Simple panel to see all reverse proxies and health (visit port panel port of go-proxy https://*.y.z:[panel port])



Why am I making this

1. It's fun.
2. I have tried different reverse proxy services, i.e. nginx proxy manager, traefik, nginx-proxy. I have found that traefik is not easy to use, and I don't want to click buttons every time I spin up a new container (nginx proxy manager). For nginx-proxy I found it buggy and quite unusable.

How to use

1. Download and extract the latest release

2. Copy content from compose.example.yml and create your own compose.yml

3. Add networks to make sure it is in the same network with other containers, or make sure proxy.<alias>.host is reachable

4. (Optional) Mount your SSL certs. See Getting SSL Certs

5. Start go-proxy with docker compose up -d or make up.

6. (Optional) If you are using ufw with vpn that drop all inbound traffic except vpn, run below to allow docker containers to connect to go-proxy

   In case the network of your container is in subnet 172.16.0.0/16 (bridge), and vpn network is under 100.64.0.0/10 (i.e. tailscale)

   sudo ufw allow from 172.16.0.0/16 to 100.64.0.0/10

   You can also list CIDRs of all docker bridge networks by:

   docker network inspect $(docker network ls | awk '$3 == "bridge" { print $1}') | jq -r '.[] | .Name + " " + .IPAM.Config[0].Subnet' -

7. start your docker app, and visit <container_name>.y.z

8. check the logs with docker compose logs or make logs to see if there is any error, check panel at panel port for active proxies

Known issues

None

Configuration

With container name, no label needs to be added.

However, there are some labels you can manipulate with:

• proxy.aliases: comma separated aliases for subdomain matching

  • defaults to container_name

• proxy.<alias>.scheme: container port protocol (http or https)

  • defaults to http

• proxy.<alias>.host: proxy host

  • defaults to container_name

• proxy.<alias>.port: proxy port

  • http/https: defaults to first expose port (declared in Dockerfile or docker-compose.yml)
  • tcp/udp: is in format of [<listeningPort>:]<targetPort>
    • when listeningPort is omitted (not suggested), a free port will be used automatically.
    • targetPort must be a number, or the predefined names (see stream.go)

• proxy.<alias>.path: path matching (for http proxy only)

  • defaults to empty

• proxy.<alias>.path_mode: mode for path handling

  • defaults to empty
  • allowed: <empty>, forward, sub
    • empty: remove path prefix from URL when proxying
      1. apps.y.z/webdav -> webdav:80
      2. apps.y.z./webdav/path/to/file -> webdav:80/path/to/file
    • forward: path remain unchanged
      1. apps.y.z/webdav -> webdav:80/webdav
      2. apps.y.z./webdav/path/to/file -> webdav:80/webdav/path/to/file
    • sub: (experimental) remove path prefix from URL and also append path to HTML link attributes (src, href and action) and Javascript fetch(url) by response body substitution e.g. apps.y.z/app1 -> webdav:80, href="/path/to/file" -> href="/app1/path/to/file"

• proxy.<alias>.load_balance: enable load balance

  • allowed: 1, true

Single port configuration example

# (default) https://<container_name>.y.z
whoami:
  image: traefik/whoami
  container_name: whoami # => whoami.y.z

# enable both subdomain and path matching:
whoami:
  image: traefik/whoami
  container_name: whoami
  labels:
    - proxy.aliases=whoami,apps
    - proxy.apps.path=/whoami
# 1. visit https://whoami.y.z
# 2. visit https://apps.y.z/whoami

Multiple ports configuration example

minio:
  image: quay.io/minio/minio
  container_name: minio
  ...
  labels:
    - proxy.aliases=minio,minio-console
    - proxy.minio.port=9000
    - proxy.minio-console.port=9001

# visit https://minio.y.z to access minio
# visit https://minio-console.y.z/whoami to access minio console

TCP/UDP configuration example

# In the app
app-db:
  image: postgres:15
  container_name: app-db
  ...
  labels:
    # Optional (postgres is in the known image map)
    - proxy.app-db.scheme=tcp

    # Optional (first free port will be used for listening port)
    - proxy.app-db.port=20000:postgres

# In go-proxy
go-proxy:
  ...
  ports:
    - 80:80
    ...
    - 20000:20000/tcp
    # or 20000-20010:20000-20010/tcp to declare large range at once

# access app-db via <*>.y.z:20000

Load balancing Configuration Example

nginx:
  ...
  deploy:
    mode: replicated
    replicas: 3
  labels:
    - proxy.nginx.load_balance=1 # allowed: [1, true]

Troubleshooting

Q: How to fix when it shows "no matching route for subdomain <subdomain>"?

A: Make sure the container is running, and <subdomain> matches any container name / alias

Benchmarks

Benchmarked with wrk connecting traefik/whoami's /bench endpoint

Direct connection

% wrk -t20 -c100 -d10s --latency http://homelab:4999/bench
Running 10s test @ http://homelab:4999/bench
  20 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     3.74ms    1.19ms  19.94ms   81.53%
    Req/Sec     1.35k   103.96     1.60k    73.60%
  Latency Distribution
     50%    3.46ms
     75%    4.16ms
     90%    4.98ms
     99%    8.04ms
  269696 requests in 10.01s, 32.41MB read
Requests/sec:  26950.35
Transfer/sec:      3.24MB

With go-proxy reverse proxy

% wrk -t20 -c100 -d10s --latency https://whoami.mydomain.com/bench
Running 10s test @ https://whoami.6uo.me/bench
  20 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     4.02ms    2.13ms  47.49ms   95.14%
    Req/Sec     1.28k   139.15     1.47k    91.67%
  Latency Distribution
     50%    3.60ms
     75%    4.36ms
     90%    5.29ms
     99%    8.83ms
  253874 requests in 10.02s, 24.70MB read
Requests/sec:  25342.46
Transfer/sec:      2.47MB

Memory usage

It takes ~ 0.1-0.4MB for each HTTP Proxy, and <2MB for each TCP/UDP Proxy

Build it yourself

1. Install go and make if not already

2. get dependencies with make get

3. build binary with make build

4. start your container with docker compose up -d

Getting SSL certs

I personally use nginx-proxy-manager to get SSL certs with auto renewal by Cloudflare DNS challenge. You may symlink the certs from nginx-proxy-manager to somewhere else, and mount them to go-proxy's /certs
