go-proxy

A simple auto docker reverse proxy for home use. Written in Go

In the examples domain x.y.z is used, replace them with your domain

Table of content

• go-proxy
  • Table of content
  • Key Points
  • How to use
  • Command-line args
    • Commands
  • Use JSON Schema in VSCode
  • Configuration
    • Labels (docker)
    • Environment variables
    • Config File
      • Fields
      • Provider Kinds
    • Provider File
    • Supported DNS Challenge Providers
  • Examples
    • Single port configuration example
    • Multiple ports configuration example
    • TCP/UDP configuration example
  • Load balancing Configuration Example
  • Troubleshooting
  • Benchmarks
  • Known issues
  • Memory usage
  • Build it yourself

Key Points

• Fast (See benchmarks)

• Auto certificate obtaining and renewal (See Config File and Supported DNS Challenge Providers)

• Auto detect reverse proxies from docker

• Auto hot-reload on container start / die / stop or config file changes

• Custom proxy entries with config.yml and additional provider files

• Subdomain matching + Path matching (domain name doesn't matter)

• HTTP(s) proxy + TCP/UDP Proxy (UDP is experimental)

• HTTP(s) round robin load balance support (same subdomain and path across different hosts)

• Web UI on port 8080 (http) and port 8443 (https)

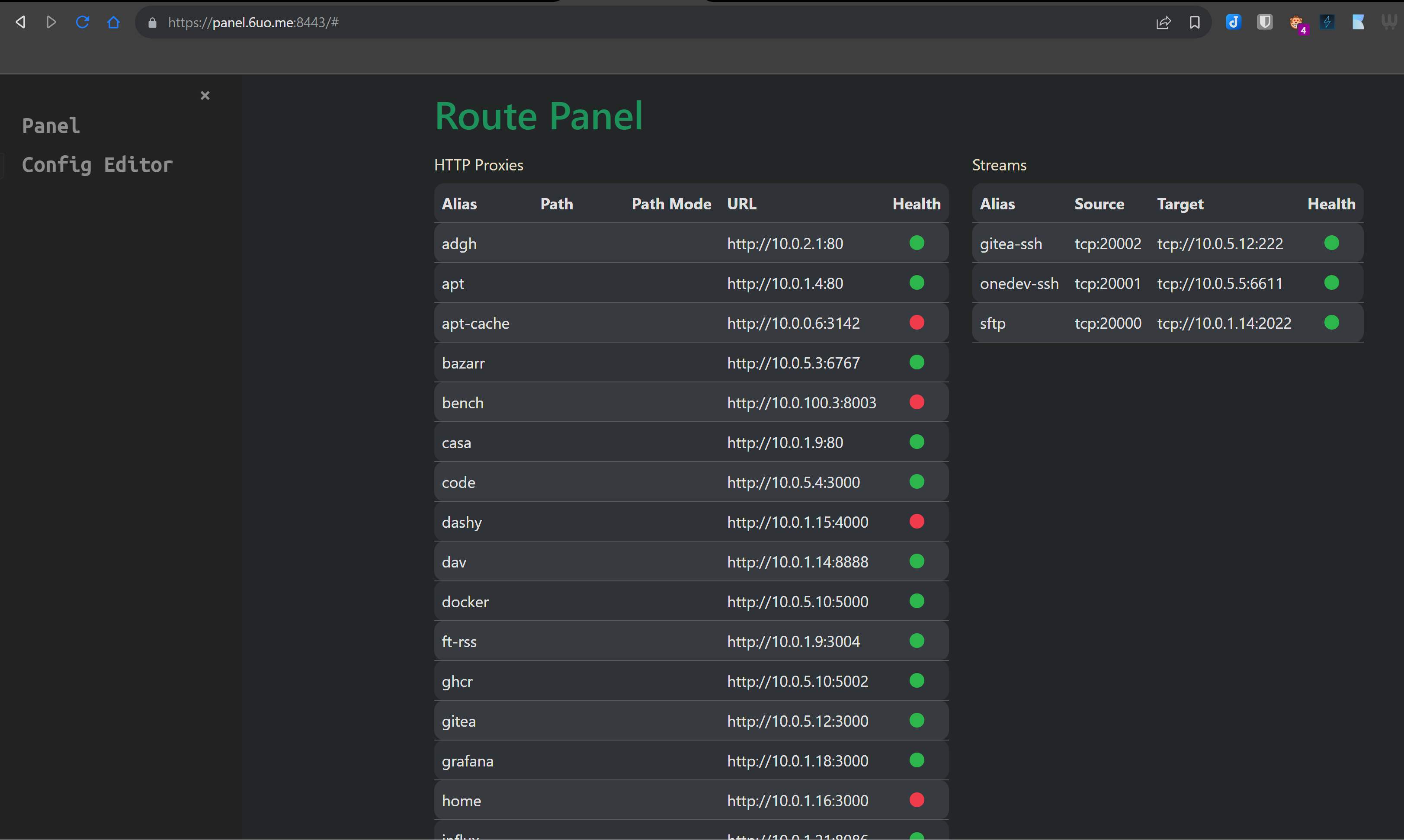

  • a simple panel to see all reverse proxies and health

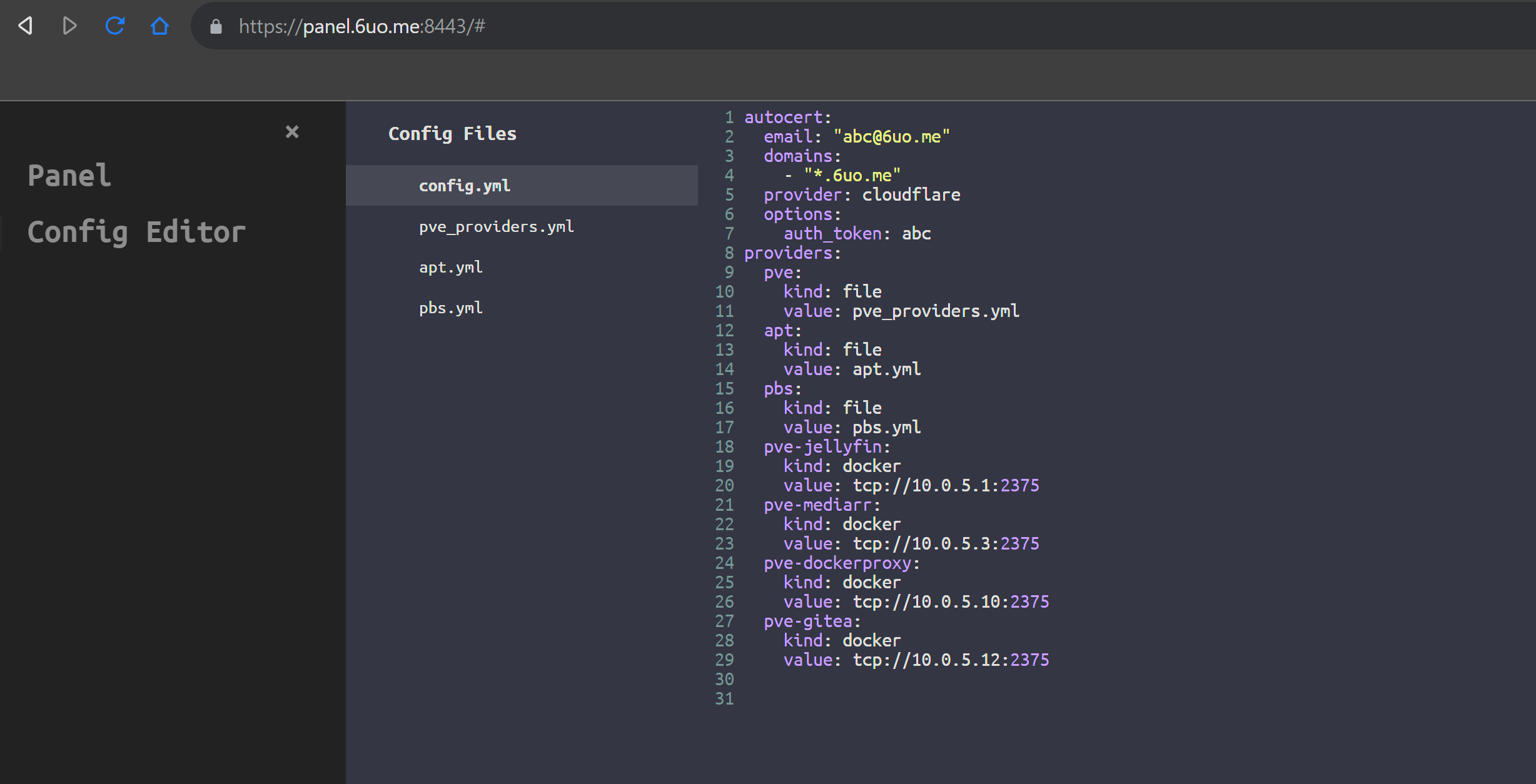

  • a config editor to edit config and provider files with validation

    Validate and save file with Ctrl+S



How to use

1. Setup DNS Records to your machine's IP address

   • A Record: *.y.z -> 10.0.10.1
   • AAAA Record: *.y.z -> ::ffff:a00:a01

2. Start go-proxy (see Binary or docker)

3. Start editing config files

   • with text editor (i.e. Visual Studio Code)
   • or with web config editor by navigate to ip:8080

Command-line args

go-proxy [command]

Commands

• empty: start proxy server
• validate: validate config and exit
• reload: trigger a force reload of config

Examples:

• Binary: go-proxy reload
• Docker: docker exec -it go-proxy /app/go-proxy reload

Use JSON Schema in VSCode

Modify .vscode/settings.json to fit your needs

{
  "yaml.schemas": {
    "https://github.com/yusing/go-proxy/raw/main/schema/config.schema.json": [
      "config.example.yml",
      "config.yml"
    ],
    "https://github.com/yusing/go-proxy/raw/main/schema/providers.schema.json": [
      "providers.example.yml",
      "*.providers.yml"
    ]
  }
}

Configuration

With container name, no label needs to be added (most of the time).

Labels (docker)

See compose.example.yml for more

• proxy.aliases: comma separated aliases for subdomain matching

  • default: container name

• proxy.*.<field>: wildcard label for all aliases

Below labels has a proxy.<alias>. prefix (i.e. proxy.nginx.scheme: http)

• scheme: proxy protocol

  • default: http
  • allowed: http, https, tcp, udp

• host: proxy host

  • default: container_name

• port: proxy port

  • default: first expose port (declared in Dockerfile or docker-compose.yml)
  • http(s): number in range og 0 - 65535
  • tcp/udp: [<listeningPort>:]<targetPort>
    • listeningPort: number, when it is omitted (not suggested), a free port starting from 20000 will be used.
    • targetPort: number, or predefined names (see constants.go:14)

• no_tls_verify: whether skip tls verify when scheme is https

  • default: false

• path: proxy path (http(s) proxy only)

  • default: empty

• path_mode: mode for path handling

  • default: empty
  • allowed: empty, forward, sub
    • empty: remove path prefix from URL when proxying
      1. apps.y.z/webdav -> webdav:80
      2. apps.y.z./webdav/path/to/file -> webdav:80/path/to/file
    • forward: path remain unchanged
      1. apps.y.z/webdav -> webdav:80/webdav
      2. apps.y.z./webdav/path/to/file -> webdav:80/webdav/path/to/file
    • sub: (experimental) remove path prefix from URL and also append path to HTML link attributes (src, href and action) and Javascript fetch(url) by response body substitution e.g. apps.y.z/app1 -> webdav:80, href="/app1/path/to/file" -> href="/path/to/file"

• load_balance: enable load balance (docker only)

  • allowed: 1, true

Environment variables

• GOPROXY_DEBUG: set to 1 or true to enable debug behaviors (i.e. output, etc.)

Config File

See config.example.yml for more

Fields

• autocert: autocert configuration

  • email: ACME Email
  • domains: a list of domains for cert registration
  • provider: DNS Challenge provider, see Supported DNS Challenge Providers
  • options: provider specific options

• providers: reverse proxy providers configuration

  • kind: provider kind (string), see Provider Kinds
  • value: provider specific value

Provider Kinds

• docker: load reverse proxies from docker

  values:

  • FROM_ENV: value from environment (DOCKER_HOST)
  • full url to docker host (i.e. tcp://host:2375)

• file: load reverse proxies from provider file

  value: relative path of file to config/

Provider File

Fields are same as docker labels starting from scheme

See providers.example.yml for examples

Supported DNS Challenge Providers

• Cloudflare

  • auth_token: your zone API token

  Follow this guide to create a new token with Zone.DNS read and edit permissions

To add more provider support, see this

Examples

Single port configuration example

# (default) https://<container_name>.y.z
whoami:
  image: traefik/whoami
  container_name: whoami # => whoami.y.z

# enable both subdomain and path matching:
whoami:
  image: traefik/whoami
  container_name: whoami
  labels:
    - proxy.aliases=whoami,apps
    - proxy.apps.path=/whoami
# 1. visit https://whoami.y.z
# 2. visit https://apps.y.z/whoami

Multiple ports configuration example

minio:
  image: quay.io/minio/minio
  container_name: minio
  ...
  labels:
    - proxy.aliases=minio,minio-console
    - proxy.minio.port=9000
    - proxy.minio-console.port=9001

# visit https://minio.y.z to access minio
# visit https://minio-console.y.z/whoami to access minio console

TCP/UDP configuration example

# In the app
app-db:
  image: postgres:15
  container_name: app-db
  ...
  labels:
    # Optional (postgres is in the known image map)
    - proxy.app-db.scheme=tcp

    # Optional (first free port will be used for listening port)
    - proxy.app-db.port=20000:postgres

# In go-proxy
go-proxy:
  ...
  ports:
    - 80:80
    ...
    - <your desired port>:20000/tcp
    # or 20000-20010:20000-20010/tcp to declare large range at once

# access app-db via <*>.y.z:20000

Load balancing Configuration Example

nginx:
  ...
  deploy:
    mode: replicated
    replicas: 3
  labels:
    - proxy.nginx.load_balance=1 # allowed: [1, true]

Troubleshooting

Q: How to fix when it shows "no matching route for subdomain <subdomain>"?

A: Make sure the container is running, and <subdomain> matches any container name / alias

Benchmarks

Benchmarked with wrk connecting traefik/whoami's /bench endpoint

Remote benchmark (client running wrk and go-proxy server are different devices)

• Direct connection

  root@yusing-pc:~# wrk -t 10 -c 200 -d 10s -H "Host: bench.6uo.me" --latency http://10.0.100.3:8003/bench
  Running 10s test @ http://10.0.100.3:8003/bench
    10 threads and 200 connections
    Thread Stats   Avg      Stdev     Max   +/- Stdev
      Latency    94.75ms  199.92ms   1.68s    91.27%
      Req/Sec     4.24k     1.79k   18.79k    72.13%
    Latency Distribution
      50%    1.14ms
      75%  120.23ms
      90%  245.63ms
      99%    1.03s
    423444 requests in 10.10s, 50.88MB read
    Socket errors: connect 0, read 0, write 0, timeout 29
  Requests/sec:  41926.32
  Transfer/sec:      5.04MB


• With reverse proxy

  root@yusing-pc:~# wrk -t 10 -c 200 -d 10s -H "Host: bench.6uo.me" --latency http://10.0.1.7/bench
  Running 10s test @ http://10.0.1.7/bench
    10 threads and 200 connections
    Thread Stats   Avg      Stdev     Max   +/- Stdev
      Latency    79.35ms  169.79ms   1.69s    92.55%
      Req/Sec     4.27k     1.90k   19.61k    75.81%
    Latency Distribution
      50%    1.12ms
      75%  105.66ms
      90%  200.22ms
      99%  814.59ms
    409836 requests in 10.10s, 49.25MB read
    Socket errors: connect 0, read 0, write 0, timeout 18
  Requests/sec:  40581.61
  Transfer/sec:      4.88MB


Local benchmark (client running wrk and go-proxy server are under same proxmox host but different LXCs)

• Direct connection

  root@http-benchmark-client:~# wrk -t 10 -c 200 -d 10s --latency http://10.0.100.1/bench
  Running 10s test @ http://10.0.100.1/bench
    10 threads and 200 connections
    Thread Stats   Avg      Stdev     Max   +/- Stdev
      Latency   434.08us  539.35us   8.76ms   85.28%
      Req/Sec    67.71k     6.31k   87.21k    71.20%
    Latency Distribution
      50%  153.00us
      75%  646.00us
      90%    1.18ms
      99%    2.38ms
    6739591 requests in 10.01s, 809.85MB read
  Requests/sec: 673608.15
  Transfer/sec:     80.94MB


• With go-proxy reverse proxy

  root@http-benchmark-client:~# wrk -t 10 -c 200 -d 10s -H "Host: bench.6uo.me" --latency http://10.0.1.7/bench
  Running 10s test @ http://10.0.1.7/bench
    10 threads and 200 connections
    Thread Stats   Avg      Stdev     Max   +/- Stdev
      Latency     1.23ms    0.96ms  11.43ms   72.09%
      Req/Sec    17.48k     1.76k   21.48k    70.20%
    Latency Distribution
      50%    0.98ms
      75%    1.76ms
      90%    2.54ms
      99%    4.24ms
    1739079 requests in 10.01s, 208.97MB read
  Requests/sec: 173779.44
  Transfer/sec:     20.88MB


• With traefik-v3

  root@traefik-benchmark:~# wrk -t10 -c200 -d10s -H "Host: benchmark.whoami" --latency http://127.0.0.1:8000/bench
  Running 10s test @ http://127.0.0.1:8000/bench
    10 threads and 200 connections
    Thread Stats   Avg      Stdev     Max   +/- Stdev
      Latency     2.81ms   10.36ms 180.26ms   98.57%
      Req/Sec    11.35k     1.74k   13.76k    85.54%
    Latency Distribution
      50%    1.59ms
      75%    2.27ms
      90%    3.17ms
      99%   37.91ms
    1125723 requests in 10.01s, 109.50MB read
  Requests/sec: 112499.59
  Transfer/sec:     10.94MB


Known issues

None

Memory usage

It takes ~15 MB for 50 proxy entries

Build it yourself

1. Install / Upgrade go (>=1.22) and make if not already

2. Clear cache if you have built this before (go < 1.22) with go clean -cache

3. get dependencies with make get

4. build binary with make build

5. start your container with make up (docker) or bin/go-proxy (binary)
